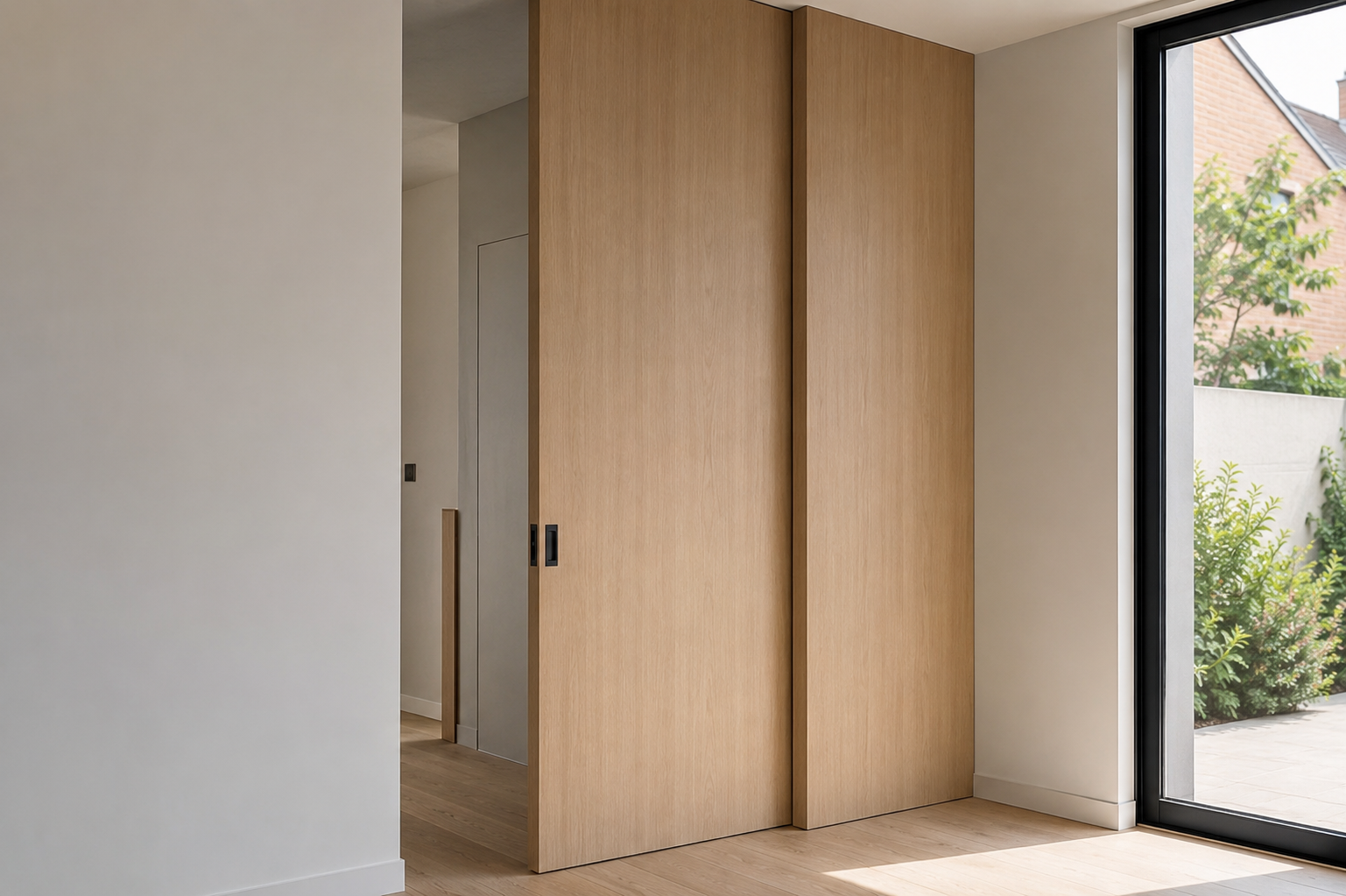

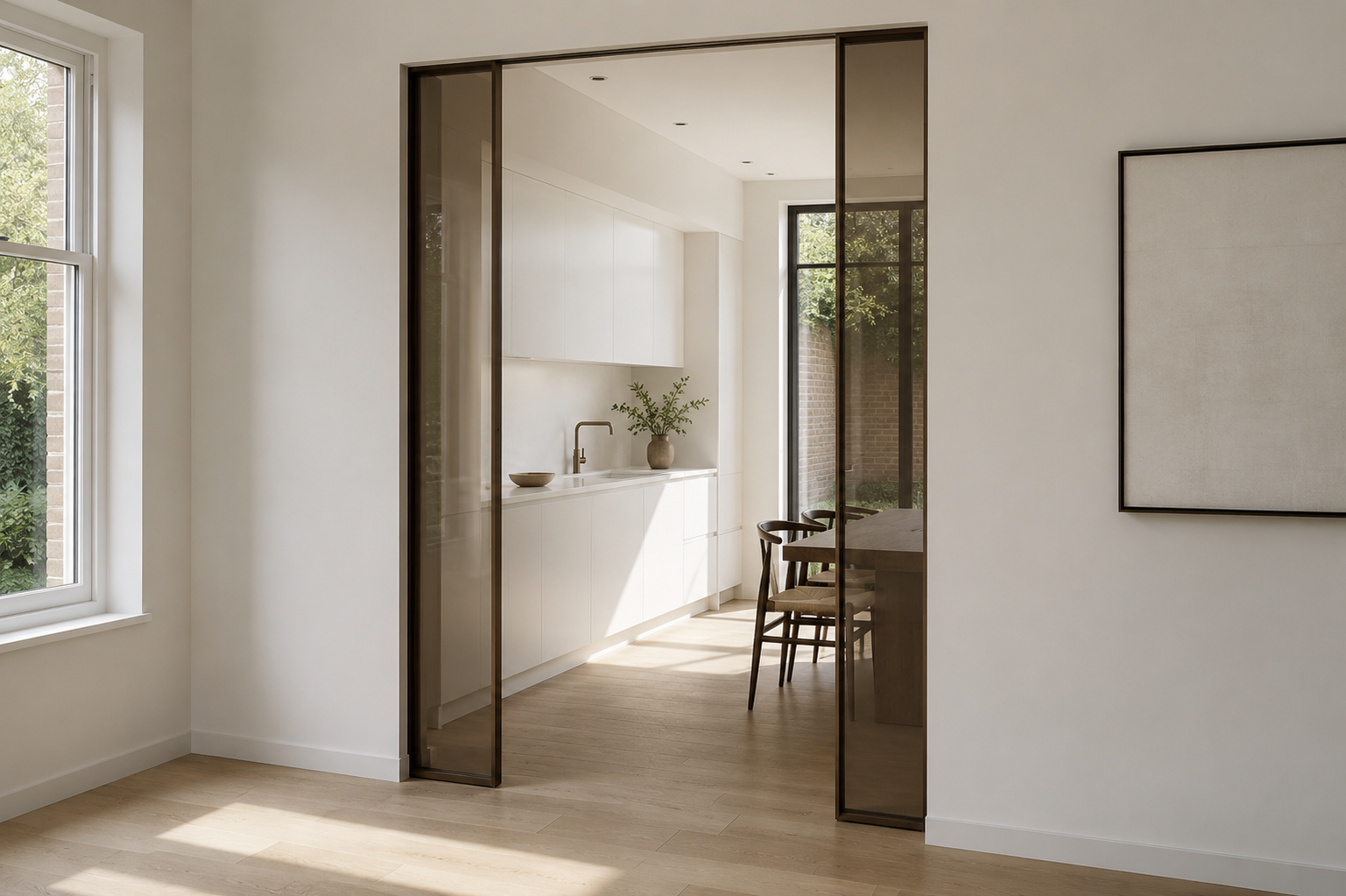

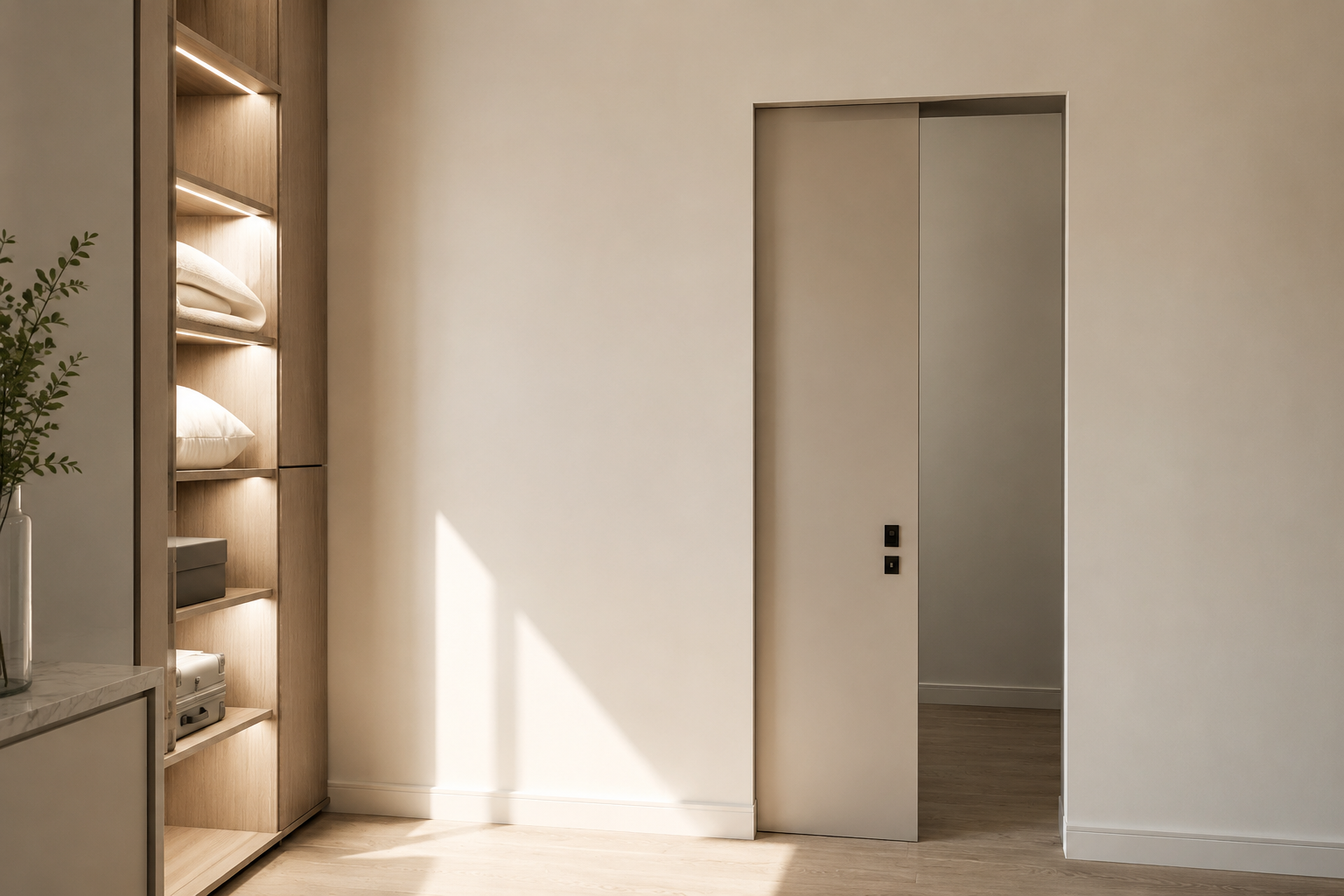

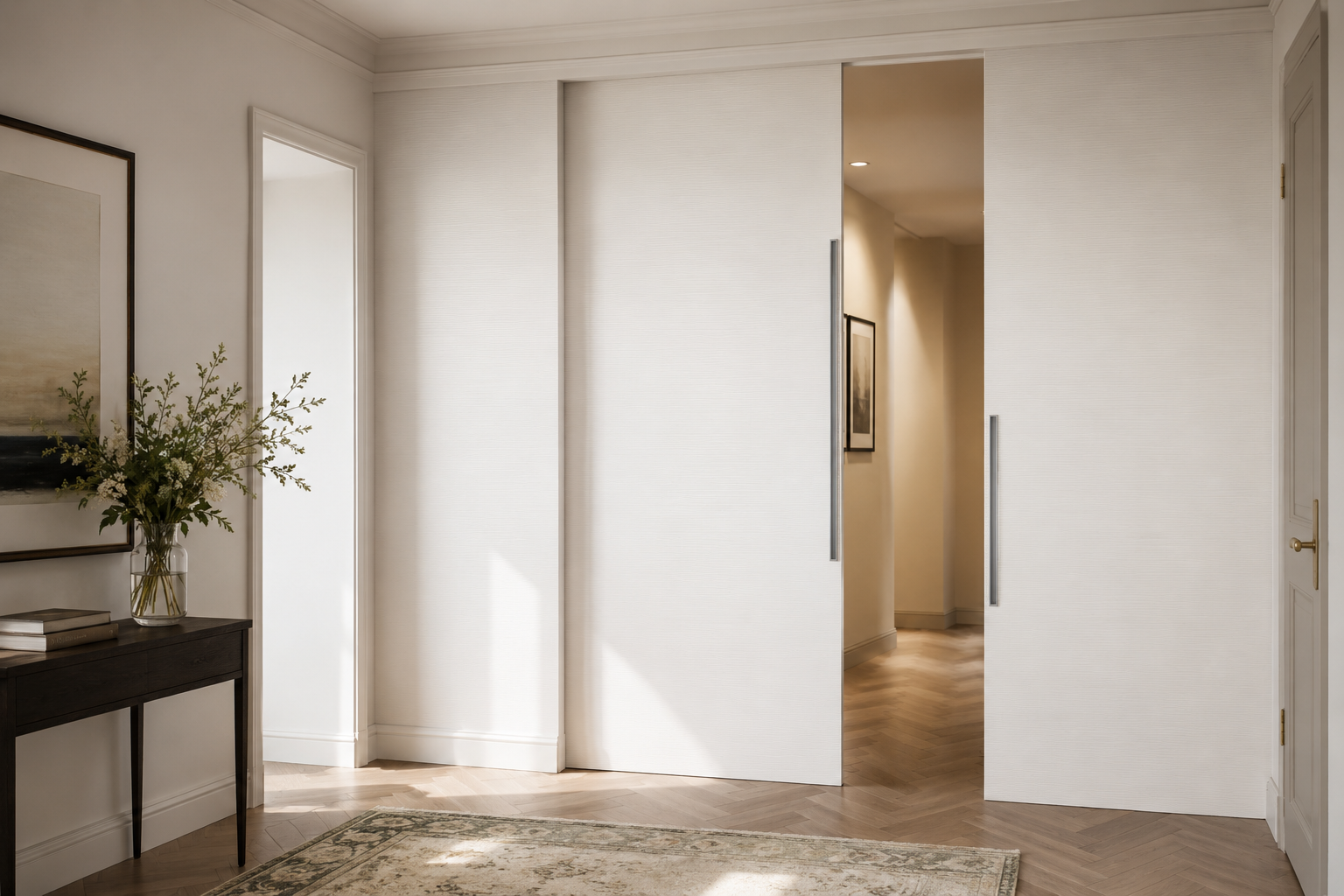

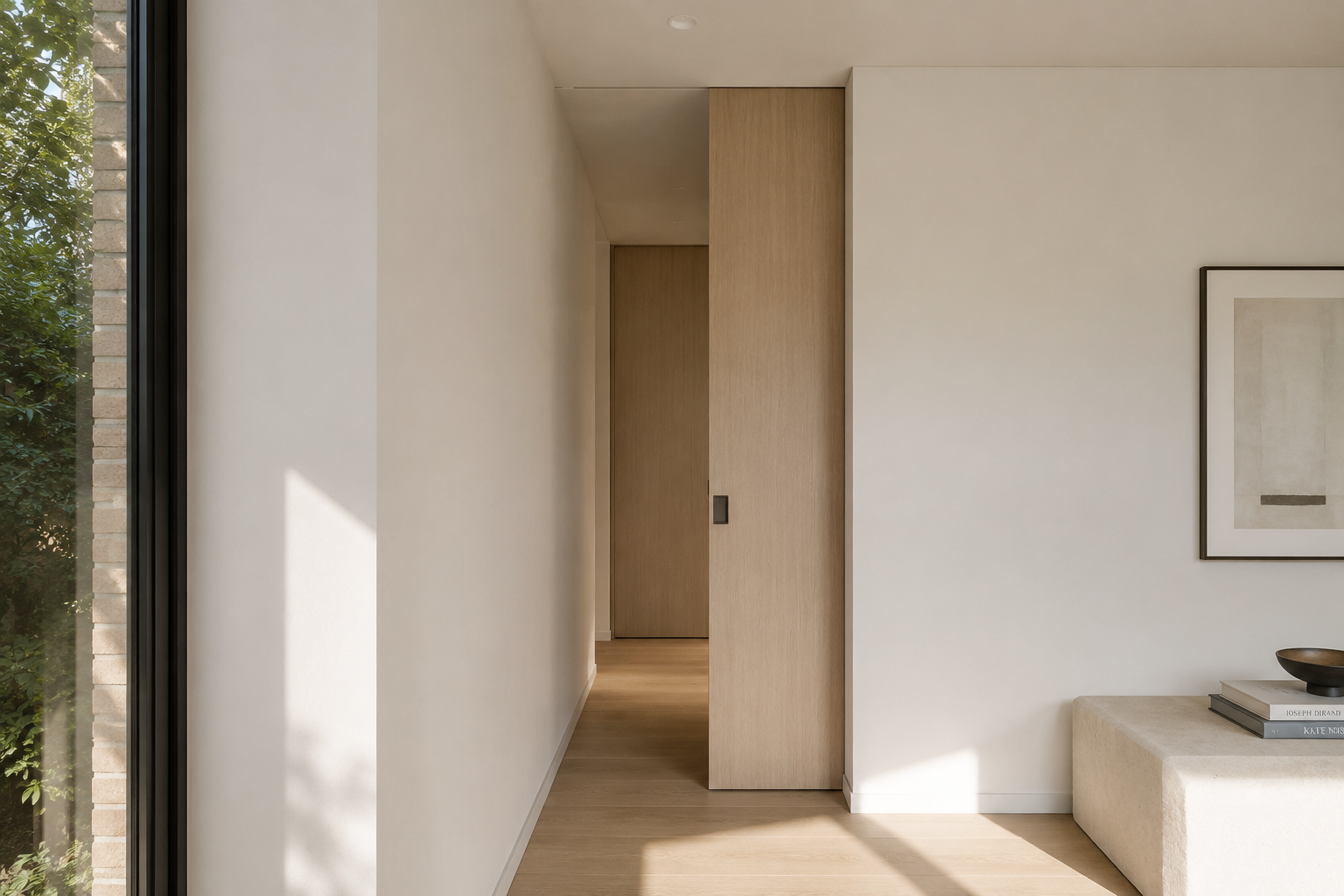

Pocket Door
Some doors are meant to be seen. This one is meant to vanish. The sash slides quietly into a concealed wall pocket until no trace of it remains — no stacked panel, no visible track, no interruption to the line of the room. What’s left behind is only the opening itself: glass, light, and an uninterrupted path between indoor and outdoor space.
That disappearance is the product of precision, not simplicity. Multi-chamber thermally broken profiles, heavy-duty stainless steel rollers, and European-engineered hardware sit behind the minimal face, built to carry expansive glazing while performing against demanding thermal, acoustic, and security standards. It is a system for spaces where the architecture is meant to breathe — villas, hotels, and premium residences where a wall is asked to become an opening, and then disappear entirely.
1. Fully Concealed Pocket System
The sliding sash disappears completely inside the wall cavity, leaving behind a clean, open architectural space with no stacked panels and nothing left to see once the door is open.
2. Ultra-Slim European Sightlines
Minimal aluminium profiles are engineered to hold their strength while taking up as little visual space as possible, letting natural light move through the opening rather than around it.
3. Thermally Broken Aluminium Profiles
Multi-chamber profiles with advanced polyamide thermal breaks keep the system performing quietly year-round, holding an even indoor climate no matter how large the glazing above it.
4. Smooth, Silent Operation
Heavy-duty stainless steel rollers and precision-engineered tracks let a panel this size move with almost no resistance, so the motion feels as effortless as the appearance suggests.
5. Large Glass Panels
The system is built to carry expansive glazing, opening up panoramic views and letting daylight fill the space uninterrupted by frame or structure.
6. Premium Security
Multi-point locking, concealed hardware, anti-lift protection, and laminated safety glazing work together behind the scenes, so protection is built in without ever showing on the surface.
Glazing is where this system does its quiet work. Double glazing from 24 to 44 mm and triple glazing from 44 to 60 mm are both supported, with Low-E coating, argon fill, and warm edge spacers available to tune light and temperature without changing the door's appearance — and for spaces that ask for more, clear, low-iron, laminated, toughened, solar control, tinted, frosted, and decorative glass options extend the palette further. Every finish carries the same restraint: matte, fine texture, and metallic powder coating, anodized aluminium, wood grain sublimation, dual colour finishes, and custom RAL tones, so the surface can be tuned to a project without ever competing with it.
The system is equally considered in how it operates and protects. Soft-close and soft-open mechanisms, concealed roller systems, flush and recessed handles, and smart lock compatibility keep daily use effortless, while multi-point locking, concealed hardware, anti-lift protection, and RC2 security configurations guard the opening without adding visual weight. Configurable as a single or double pocket, corner pocket, fixed panel with pocket slider, or floor-to-ceiling glass configuration, the system adapts to luxury villas, contemporary homes, apartments, hotels and resorts, offices, retail spaces, restaurants, and other premium developments wherever an uninterrupted transition between spaces is the goal.
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Sliding Pocket Hidden Door |
| Opening Style | Single Pocket, Double Pocket |
| Frame Depth | 150–190 mm |
| Sash Depth | 50–70 mm |
| Aluminium Alloy | EN AW-6060 T66 / EN AW-6063 T6 |
| Aluminium Thickness | 2.0–3.0 mm |
| Thermal Break | 30–42 mm Glass Fibre Reinforced Polyamide (PA66 GF25) |
| Maximum Panel Height | Up to 3,500 mm |
| Maximum Panel Width | Up to 3,000 mm |
| Maximum Panel Weight | Up to 500 kg |
| Surface Finish | Qualicoat Powder Coating, Anodized, Wood Effect Sublimation |
| Standard Colours | RAL 7016, RAL 9005, RAL 9016, Bronze, Champagne, Custom RAL Colours |
Glazing Options
- Double Glazing: 24–44 mm, Low-E coating, argon gas filled, warm edge spacer
- Triple Glazing: 52–60 mm, high thermal performance, superior acoustic insulation, enhanced energy efficiency
- Glass types: clear, low-iron, laminated safety, toughened safety, tinted, solar control, frosted, decorative
Thermal Performance
| Performance | Value |
|---|---|
| Whole System U-Value (Uw) | As low as 1.0 W/m²K |
| Glass U-Value (Ug) | As low as 0.5 W/m²K |
| Thermal Break | 30–42 mm Polyamide |
Weather Performance
| Test | Performance |
|---|---|
| Air Permeability | EN 12207 – Class 4 |
| Water Tightness | EN 12208 – Up to E900 |
| Wind Resistance | EN 12210 – Up to Class C5 |
| Acoustic Performance | Up to 45 dB |
| Thermal Insulation | EN ISO 10077 Compliant |
Security Features
Multi-point locking mechanism, concealed locking hardware, anti-lift protection, laminated safety glazing compatibility, toughened safety glass compatibility, RC2 security configurations available.
Hardware Options
Heavy-duty stainless steel rollers, concealed roller system, soft-close mechanism, soft-open mechanism, flush pull handles, recessed handles, multi-point locking, smart lock compatibility, concealed bottom guide, stainless steel tracks.
Available Configurations
Single sliding pocket door, double sliding pocket door, corner pocket system, fixed panel + pocket sliding door, multi-panel pocket configuration, open corner pocket system, floor-to-ceiling glass panels, hidden frame pocket system.
European Standards Compliance
| Standard | Description |
|---|---|
| EN 14351-1 | External Pedestrian Doors and Windows |
| EN 12207 | Air Permeability |
| EN 12208 | Water Tightness |
| EN 12210 | Wind Resistance |
| EN ISO 10077 | Thermal Performance |
| EN 1191 | Mechanical Durability |
| EN 1627 | Burglar Resistance |
| EN 356 | Security Glazing |
| EN 1279 | Insulating Glass Units |
| EN 1096 | Coated Glass |
| EN 12150 | Toughened Safety Glass |
| EN 14449 | Laminated Safety Glass |
