Fixed Louvre Shading
A fixed louvre never needs to move to do its work. Aluminium blades are set at a precise angle and held there permanently, cutting direct solar radiation while daylight and outward views pass through undisturbed — shading that operates continuously, with nothing to open, close, or adjust.
That permanence is engineered, not incidental. European-grade architectural aluminium, corrosion-resistant fasteners, and concealed fixing systems are built to hold their structural performance for decades with no moving mechanical components to maintain. It’s a system suited to luxury villas, commercial towers, and landmark developments where a façade’s shading has to look as considered on day one as it does twenty years on.
1. Permanent Solar Control
Fixed aluminium louvre blades are precisely positioned to reduce direct solar radiation while allowing natural daylight and maintaining external visibility.
2. Premium Architectural Aluminium
Manufactured using European-grade aluminium extrusions that provide excellent structural strength, dimensional stability, corrosion resistance, and long-term durability.
3. Optimized Natural Ventilation
Carefully engineered blade spacing promotes continuous airflow while providing effective solar shading and privacy.
4. Contemporary Architectural Appearance
Slim architectural blade profiles and concealed fixing systems create clean, minimalist façades suitable for modern residential and commercial developments.
5. Low Maintenance Construction
With no moving mechanical components, the system offers exceptional reliability, reduced maintenance requirements, and extended service life.
6. Modular Design
Available in multiple blade profiles, dimensions, and mounting configurations to suit diverse architectural applications.

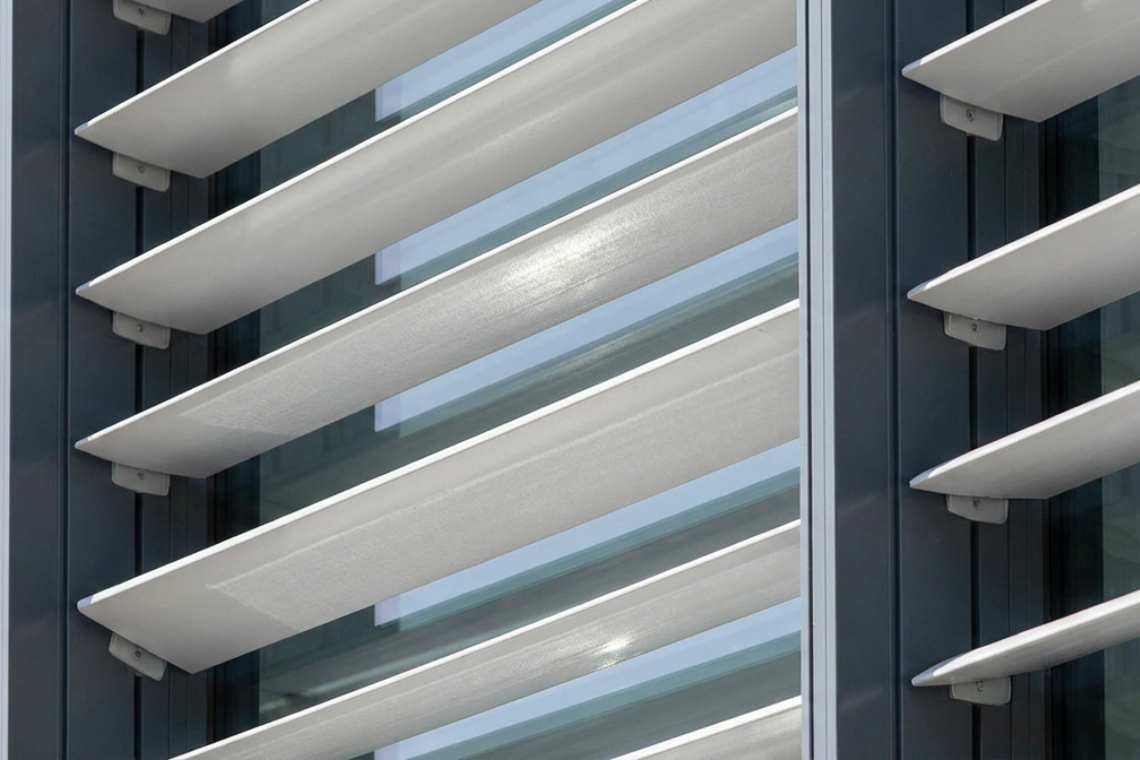

Blade design is chosen to match the performance the façade needs. Aerofoil blades give superior shading with reduced wind resistance and an elegant contemporary line; rectangular blades hold a minimalist, uniform appearance with high structural rigidity; elliptical blades improve airflow and daylight management; and Z-blades add privacy and rain protection alongside reduced direct sunlight penetration. All are extruded from architectural aluminium in widths from 100 to 400 mm, at angles set to each project's solar requirements.
Configuration follows the façade, not the other way around. Horizontal, vertical, and inclined louvre arrangements support window sun screens, curtain wall integration, balcony privacy screens, roof edge and mechanical equipment screening, parking structure screening, and fully custom architectural installations. That range suits luxury villas, commercial towers, hotels, educational and healthcare facilities, airports, and landmark developments alike.
Technical Specifications
| Specification | Details |
|---|---|
| System Type | Fixed Aluminium Louvre Shading System |
| Louvre Configuration | Fixed Horizontal, Vertical or Inclined |
| Blade Profiles | Aerofoil, Rectangular, Elliptical, Z-Blade |
| Blade Width | 100–400 mm |
| Blade Thickness | 2.0–3.5 mm |
| Blade Angle | Project Specific (Typically 15°–60°) |
| Maximum Blade Length | Up to 6,000 mm |
| Structural Frame | Extruded Architectural Aluminium |
| Aluminium Alloy | EN AW-6060 T66 / EN AW-6063 T6 |
| Aluminium Profile Thickness | 2.0–3.0 mm |
| Fasteners | AISI 316 Stainless Steel |
| Surface Finish | Qualicoat Powder Coating, Anodized, Wood Grain Sublimation |
| Standard Colours | RAL 7016, RAL 9005, RAL 9016, Bronze, Champagne, Custom RAL Colours |
Louvre Blade Options
- Aerofoil Blades: superior solar shading performance, reduced wind resistance, elegant contemporary appearance
- Rectangular Blades: minimalist architectural styling, high structural rigidity, uniform façade appearance
- Elliptical Blades: improved airflow characteristics, enhanced daylight management, premium architectural aesthetics
- Z-Blades: increased privacy, reduced direct sunlight penetration, enhanced rain protection
Environmental Performance
| Performance | Details |
|---|---|
| Solar Heat Gain Reduction | High Performance |
| Daylight Optimization | Excellent |
| Passive Cooling | Enhanced |
| Natural Ventilation | Optimized |
| Energy Efficiency | Reduced Cooling Loads |
Weather Performance
| Performance | Details |
|---|---|
| Wind Resistance | Project Specific Engineering |
| Corrosion Resistance | Marine Grade Performance |
| UV Resistance | High-Performance Architectural Coatings |
| Weather Durability | Long-Term Exterior Performance |
| Temperature Resistance | Suitable for Extreme Climates |
Weather Performance
| Performance | Details |
|---|---|
| Wind Resistance | Project Specific Engineering |
| Corrosion Resistance | Marine Grade Performance |
| UV Resistance | High-Performance Architectural Coatings |
| Weather Durability | Long-Term Exterior Performance |
| Temperature Resistance | Suitable for Extreme Climates |
Security Features
Non-combustible aluminium construction, concealed structural fixing systems, tamper-resistant stainless steel fasteners, reinforced aluminium support framework, corrosion-resistant components, UV-stable architectural finishes, maintenance-friendly design.
Hardware Components
Extruded aluminium louvre blades, structural aluminium support frame, stainless steel mounting brackets, concealed fixing systems, adjustable blade supports, expansion anchors, structural connectors, decorative end caps, integrated drainage components (where applicable).
Available Configurations
Horizontal façade louvres, vertical façade louvres, inclined sun louvres, window sun screens, curtain wall integrated louvres, balcony privacy screens, roof edge screening, mechanical equipment screening, parking structure screening, decorative façade features, custom architectural installations.
European Standards Compliance
| Standard | Description |
|---|---|
| EN 13659 | External Blinds and Solar Shading Devices |
| EN 13561 | External Solar Shading Systems – Performance Requirements |
| EN 1090 | Execution of Aluminium Structural Components |
| EN 755 | Aluminium Extruded Profiles |
| EN 1991 | Eurocode 1 – Structural Actions |
| EN 1999 | Eurocode 9 – Design of Aluminium Structures |
| EN ISO 12944 | Corrosion Protection of Metal Structures |
| EN ISO 3506 | Stainless Steel Fasteners |
| Qualicoat | Powder Coating Quality Standard |
| Qualanod | Anodized Aluminium Quality Standard |
| CE Marking | Compliant with European Construction Products Regulation (CPR) |
| ISO 9001 | Quality Management Systems |
