ALV-VD 50

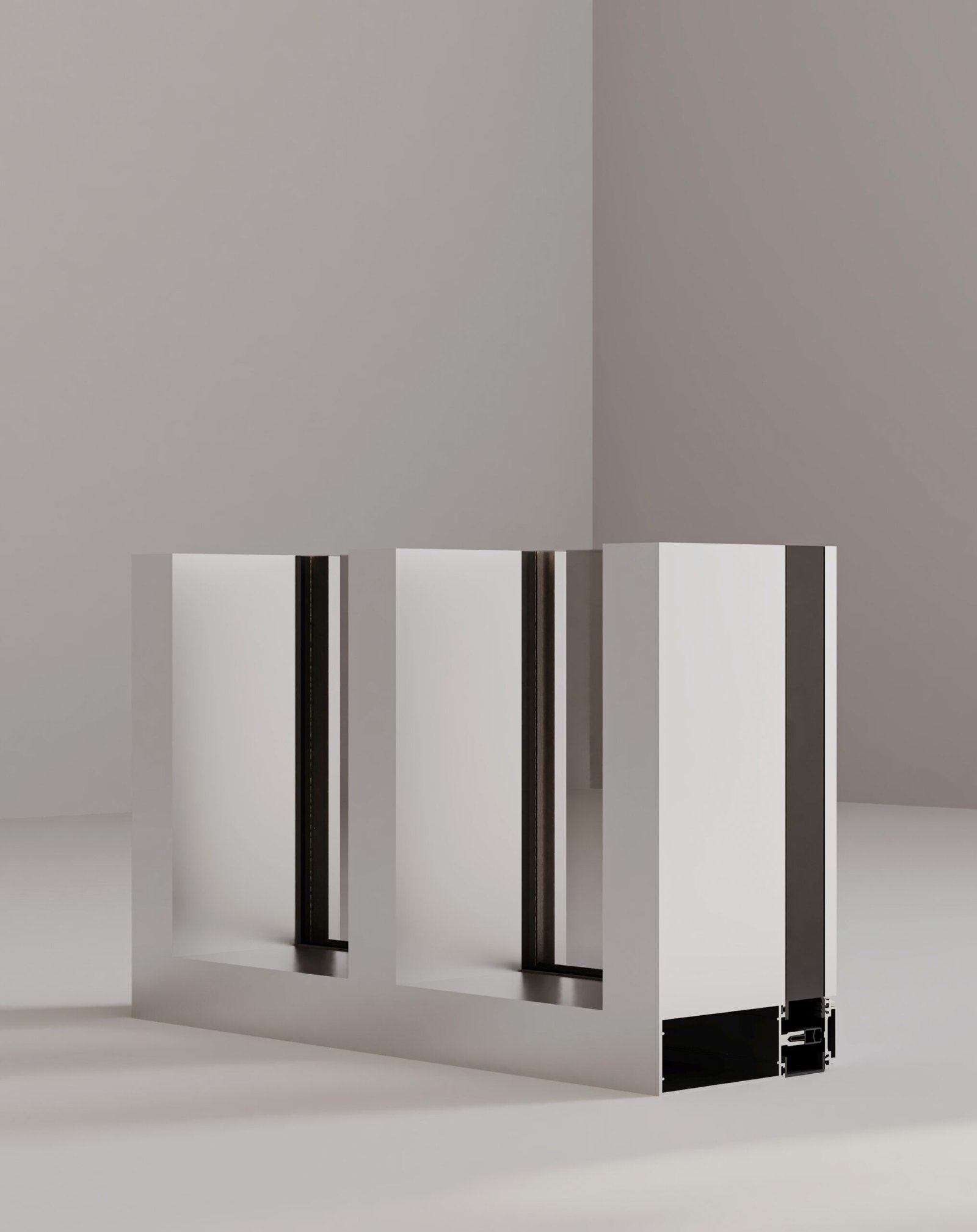

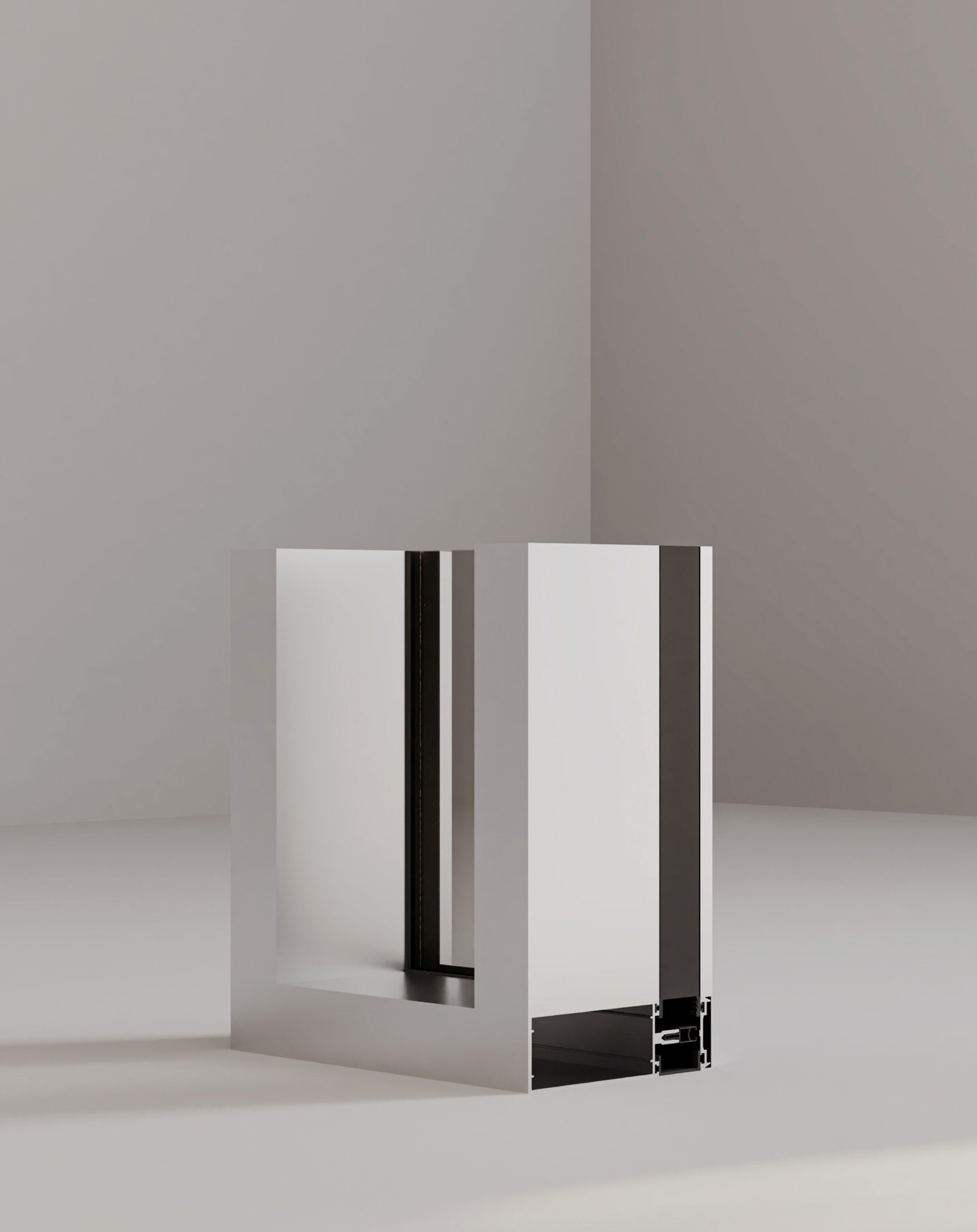

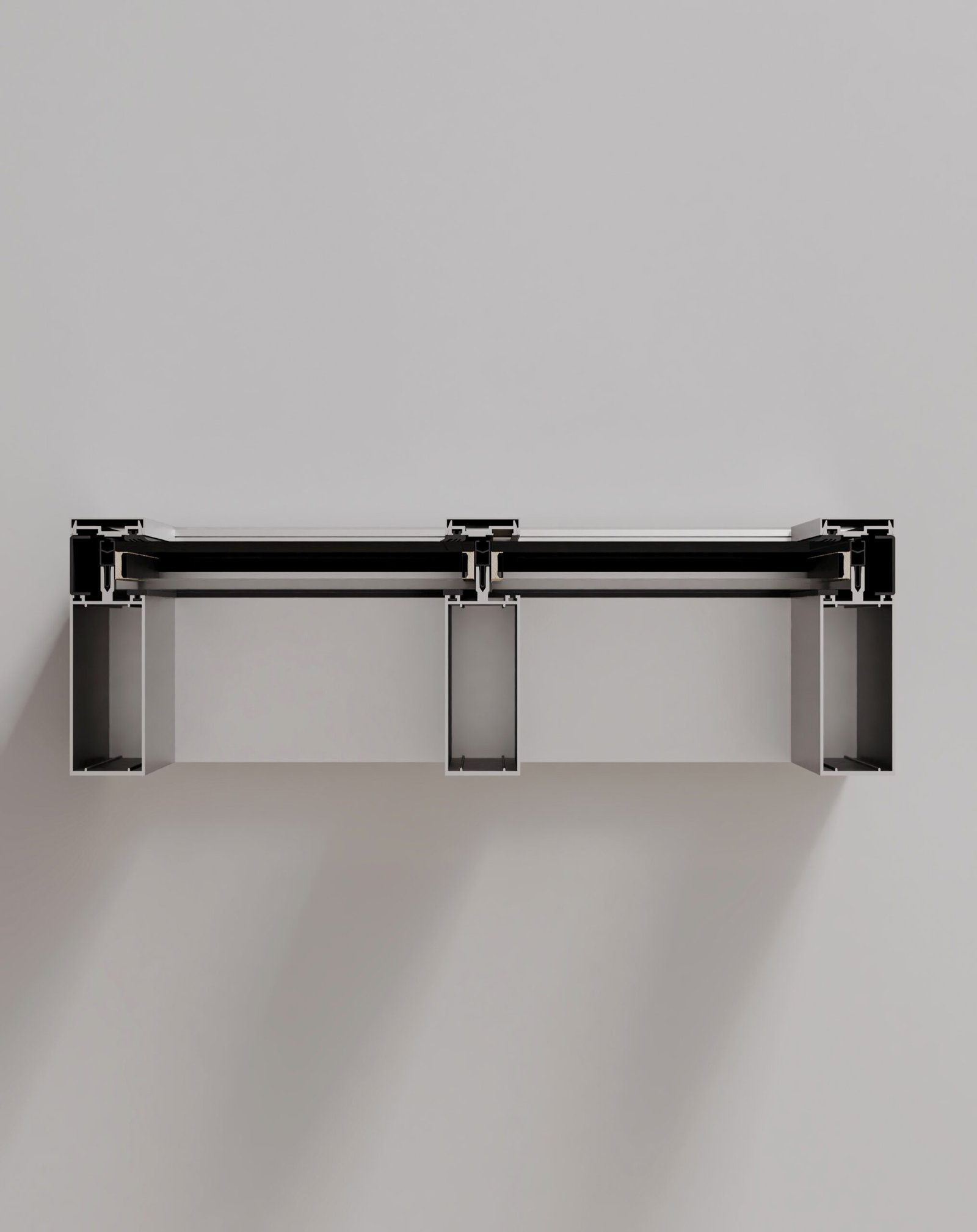

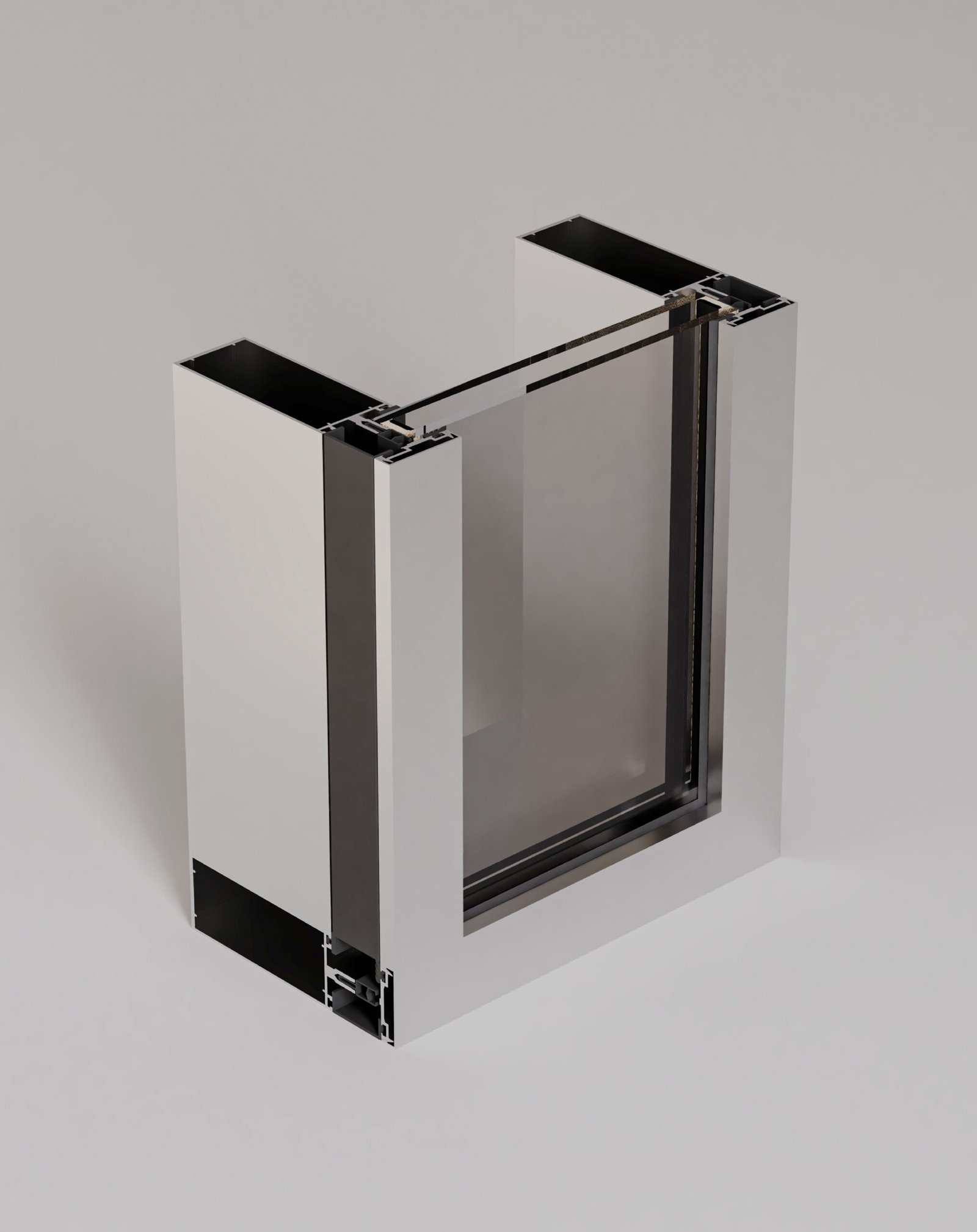

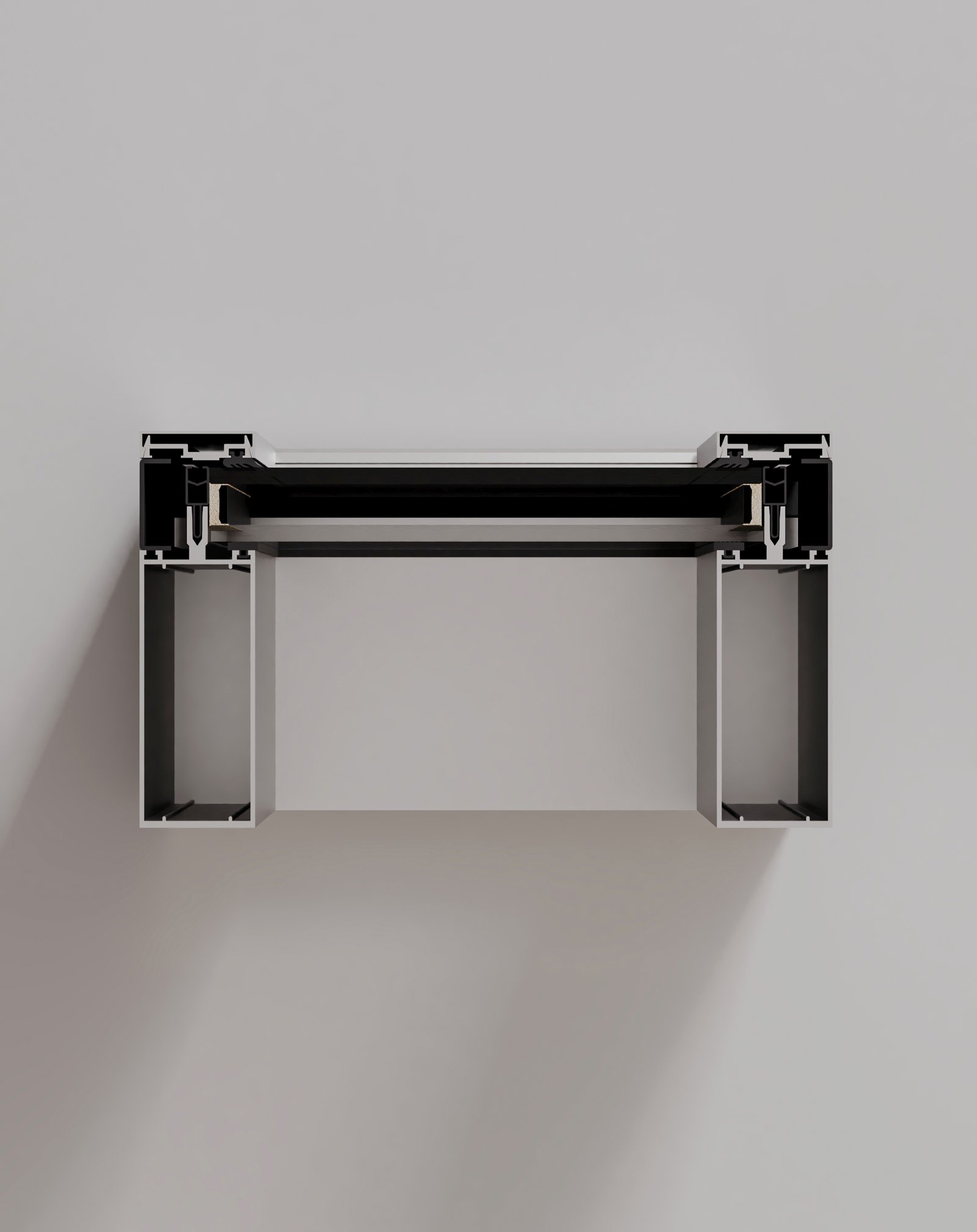

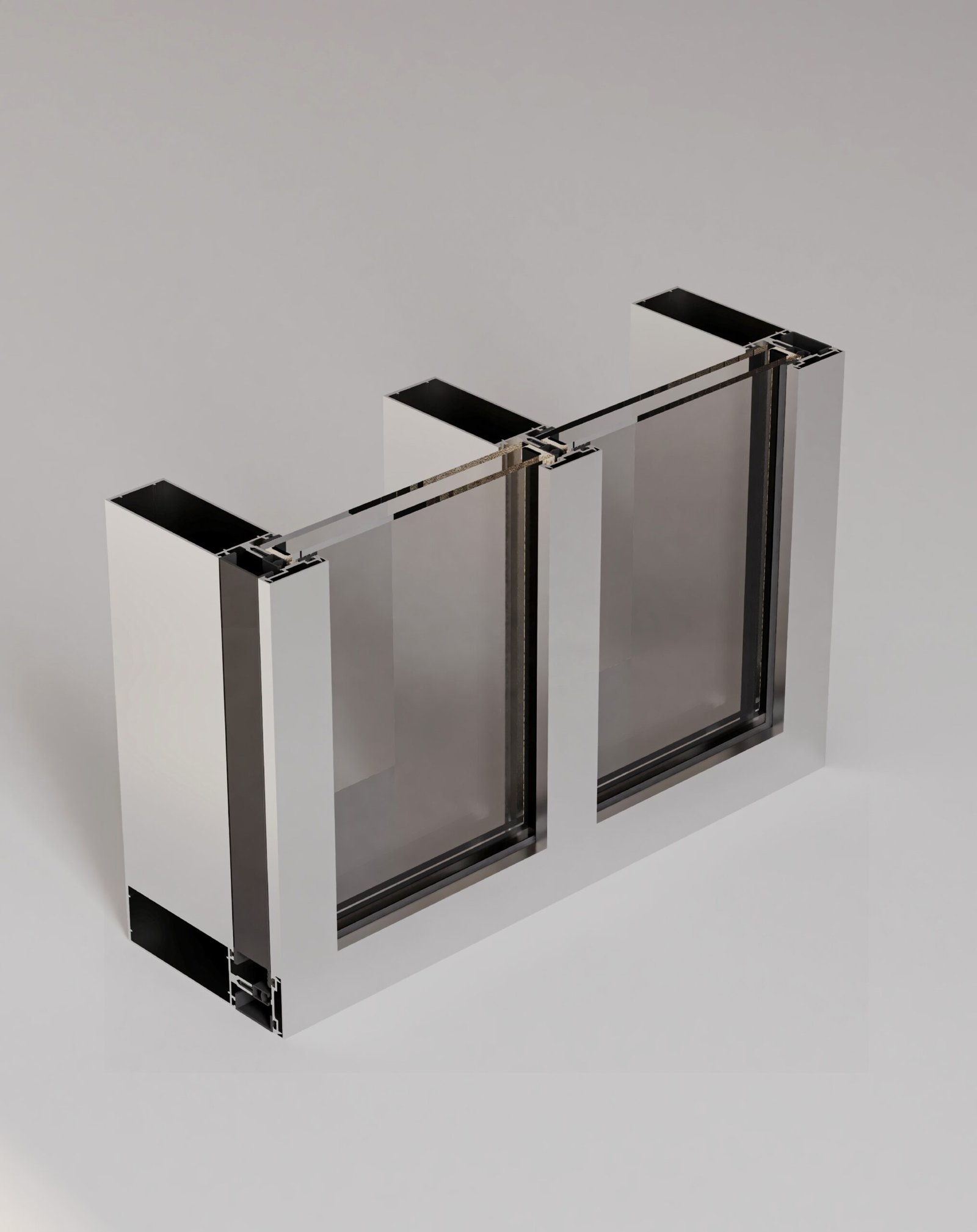

The ALV-VOID 50 Curtain Wall System is designed for projects that require a stronger architectural presence while maintaining high levels of structural and weather performance. Its 50 mm visible sightline creates a more pronounced façade expression, while the 170 mm structural mullion provides the depth required to support larger glazed spans with consistent geometry. Integrated pressure-cap glazing, concealed drainage, and continuous EPDM gasket technology deliver reliable weather protection, durability, and long-term performance, making ALV-VOID 50 well suited to premium residential, commercial, and hospitality façades.
TECHNICAL SPECIFICATIONS
ALV VOID is available in three track configurations to match project scale — from intimate courtyard openings to full-height living walls. Each configuration carries its own performance envelope, so the right variant can be matched precisely to the demands of the opening.
| Specification | ALV VD 50 |
|---|---|
| Sightline | 50 mm |
| Mullion Depth | 100 mm |
| Transom Depth | 100 mm |
| Glass Thickness | ≤ 48 mm |
| Glazing | Double / Triple |
| Thermal Performance | 1.5 W/m²K |
| Air Permeability | Class 4 |
| Water Tightness | Class 7A |
| Wind Resistance | Class C5 |
| Pressure-Cap Glazing | ✓ |
| EPDM Gaskets | ✓ |
